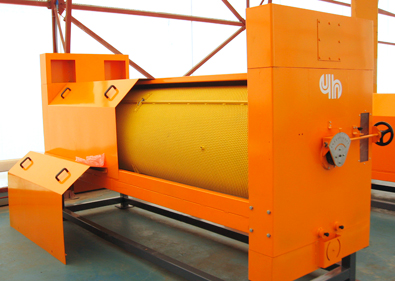

INDENTED SEPARATOR CYLINDERS
МBTS-12
Used as part of grain cleaning lines. Designed for extraction of short and long impurities from grain piles. Cleaning of seed material after pre-, primary and secondary cleaning on air-sieve machines.
The unit of modular and consists of two cell cylinders. The construction provides assembly in various combinations. Bearings of cylinders never contact wit products; internal friction surfaces are made of special materials that don’t require greasing.
Four-section cell case with high productive cells 1.0… 20 mm are replaced subject to the culture.
|
Parameter |
Value |
|
Output, t/h (wheat),
NLT |
12,0 |
|
Total rated capacity
of electric motors, kW, NMT |
6,0 |
|
Rated capacity of
electric motor of upper separator cylinder, kW, NMT |
3,0 |
|
Rated capacity of
electric motor of bottom separator cylinder, kW, NMT |
3,0 |
|
Dimensions, mm – L – W – H |
4 100 1 200 2 800 |
|
Weight, kg |
2 600 |
|
Cylinder diameter,
mm |
900 |
|
Cylinder length |
3 000 |
Advantages
• Compact;
• No duster insides;
• Connection of aspiration;
• High precision of separator segments;
• Vibration-free, low noise level;
• Easy adjustment of cleaning;
• Robust and durable.
