FLEXIBLE CORRUGATED TUBES


JV UNIBOX Ltd. offers a wide range of flexible corrugated stainless tubes, conforming to Belarusian, European and Russian standards.
Corrugated tubes are made of high-quality stainless steel AISI 304, 304L, 316, which guarantees products long life and increased reliability. The pressure the corrugated stainless tubes Unibox are meant for is significantly higher than the pressure of urban gas and water supply networks.
The available equipment allows us to produce tubes with an outside diameter of 12,7 to 50,8 mm and a wall thickness of 0,15 to 0,3 mm.
We also offer a wide assortment of brass connectors (fittings) with silicone seals with which the tube can be quickly and easily mounted. Due to the special design the installation of corrugated tube is carried out quickly and reliably without the involvement of qualified installers.

Advantages of corrugated stainless tubes:
• Durability (service life of high-alloy stainless tube and brass nuts is not limited);
• Easy installation of the tube;
• The tube does not catch sedimentary material, it is very easy to bend without using any tools, without affecting its flow area, and without causing microcracks and mechanical stress in the metal;
• The tubes are freeze resistant in winter. You can thaw them as a regular steel tube;
• The tube can be used in a wide range of temperatures (up to +550°C) and pressure (up to 15 atm);
• The tubes do not require special monitoring after installation, so the tube can be laid in a screed and under plaster on the wall.

Application
• Systems for hot and cold water supply
• Heating systems
• Heated floors and walls
• Boiler-house piping
• Manufacture of heat exchangers, conditioning and ventilation systems
• Flexible gas tubes
• Hermetical metal hose for electric wiring, computer networks and other supply lines
• Flexible tubes for automatic water and foam extinguishing systems
• Dimensioned vibrating compensator
• Tubes for fuel and lubricants

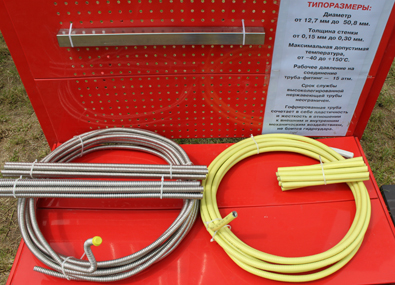

Corrugated stainless tube HF / HFP

Classification

Material

Color

Application

HF

AISI 304 / AISI 316 (heat treatment)

Normal

Hot water supply, sprinklers, conditioning systems

HFP

AISI 304 / AISI 316 (heat treatment + PE jacket)

Yellow, white, blue

Hot water supply, gas tubes, municipal gas supply systems


Specifications

Nominal diameter

15 mm (1/2")

20 mm (3/4")

Outside diameter, mm

18,1

25,6

Inside diameter, mm

14,1

21

Tube wall thickness without coating, mm

0,3

0,3

Tube wall thickness with coating, mm

0,5

0,5

Permissible error, mm

±0,2

±0,2

Corrugation pitch, mm

4,76

5,00

Working temperature, °С

–15 to +70

 –15 to +70

Maximum allowable temperature, °С

 –40 to +150

–40 to +150

Working pressure on the connection tube-fitting, atm

15

12

Maximum allowable pressure on the connection tube-fitting, atm

60

60

Maximum (permitting) pressure on the tube, atm

210

210

Minimum bend radius, mm

not less than 30

not less than 30

Service life, years

unlimited

unlimited

Service life of sealing rings in coupling fittings in non-aggressive environments, years

30

30

Annealed Corrugated Tubes, Type М

Diameter, мм

In bundle, rm

15 (1/2˝)

50

20 (3/4 ˝)

30

25 (1 ˝)

30

32 (1 1/4 ˝)

20

Unannealed Corrugated Tubes, Type А

Diameter, mm

In bundle, rm

15 (1/2˝)

50

20 (3/4 ˝)

30

25 (1 ˝)

30

Unannealed Corrugated Tubes, PE jacket, Type P

Diameter, mm

In bundle, rm

15 (1/2˝)

50

20 (3/4 ˝)

30

25 (1 ˝)

30

32 (1 1/4 ˝)

20
