SQUARE

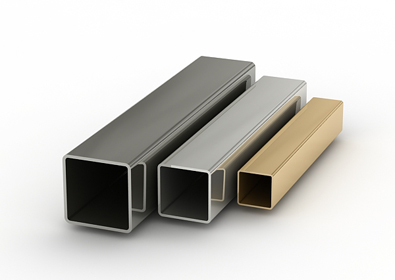

STAINLESS WELDED TUBES
The Group of Companies UNIBOX offers made to order square stainless welded tubes up to 6 meters in length of various diameters and wall thickness. Welding is performed by laser and TIG welding.
Types of Surface
• Matt (brushed)
• Ground (G180x400)
• Polished (G600)
Standard: DIN 17457.
Tolerances: ISO 1127, DIN 11850.
Steel grades: AISI 201, 202, 304, 409, 430, 439.
Theoretical weight of one running meter of tube, kg/m
|
Size AxB, mm |
1 |
1,2 |
1,5 |
2 |
2,5 |
3 |
4 |
5 |
6 |
|
10х10 |
0,294 |
|
|
|
|
|
|
|
|
|
12х12 |
0,358 |
0,423 |
0,518 |
|
|
|
|
|
|
|
15х15 |
0,453 |
0,539 |
0,661 |
|
|
|
|
|
|
|
16х16 |
0,485 |
0,576 |
0,709 |
0,920 |
|
|
|
|
|
|
20х20 |
0,613 |
0,729 |
0,901 |
1,175 |
|
|
|
|
|
|
25х25 |
0,771 |
0,917 |
1,129 |
1,475 |
1,837 |
2,167 |
|
|
|
|
30х30 |
0,931 |
1,108 |
1,371 |
1,795 |
2,203 |
2,643 |
|
|
|
|
35х35 |
1,081 |
1,302 |
1,612 |
2,115 |
2,604 |
3,124 |
|
|
|
|
40х40 |
1,251 |
1,494 |
1,852 |
2,434 |
3,003 |
3,562 |
4,703 |
|
|
|
45х45 |
1,410 |
1,687 |
2,097 |
2,756 |
3,405 |
4,081 |
5,342 |
|
|
|
50х50 |
1,570 |
1,882 |
2,332 |
3,078 |
3,806 |
4,533 |
5,997 |
7,349 |
|
|
60х60 |
|
|
2,815 |
3,724 |
4,612 |
5,494 |
7,267 |
8,943 |
|
|
70х70 |
|
|
3,303 |
4,379 |
5,443 |
6,494 |
8,557 |
|
|
|
80х80 |
|
|
3,798 |
5,040 |
6,268 |
7,484 |
9,807 |
12,133 |
14,410 |
|
100х100 |
|
|
4,728 |
6,400 |
7,969 |
9,525 |
12,600 |
15,624 |
18,236 |
|
150х150 |
|
|
|
|
|
14,126 |
18,735 |
23,293 |
27,802 |
We also can manufacture tubes of other standard sizes and wall thickness, as well as of other grades of stainless steel.
