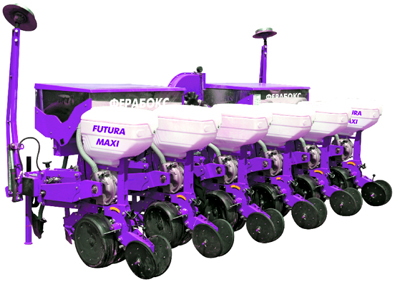

MULTIPURPOSE PNEUMATIC SEEDER OF PRECISE SOWING FUTURA MAXI-6 (8, 12)»

Multifunction pneumatic seeder of precise sowing FUTURA MAXI -6 (8, 12)» is designed for dotted sowing of seeds of maize, beet, tomato, beans, peas, sunflower, cotton, rape, soya, sorgho, and also cultivated crops with seeds of similar size, shape and weight in space between rows 45…75 cm.

Multifunction pneumatic seeder of precise sowing FUTURA MAXI -6 (8, 12)» is perfectly match the need of the modern agriculture providing maximum output at minimum cost. The design was focused on robustness, user friendly, and precise sowing.
Innovative systems of seed distribution, robustness of seed bar, vibration-free operation even with hard soil provides highly precise sowing at high speed.

Robust and deformation resistant vomer connective parallelogram, chain drive under protective carter and guards of sowing bar render consumer’s operation free of failures due to unexpected damage during sowing and assure schedule precision and high yield of sowing campaign. Metal-graphite oilite bushes are mounted on moving mechanisms and do not need any maintenance and guarantee longevity.

The seeder is designed on the advanced technologies in the field. Technical specifications provide optimal operation not only on prepared soils but on those with minimum treatment even with plant wastes.

Technical specifications

Parameters

8-row

10-рядная

12-row

Grasp width, m

4,2

5,6

8,4

Row number

6

8

12

Inter-row spacing, cm

45-75

45-75

45-75

Capacity, ha/h

2,0-4,0

2,6-5,0

4,0-7,0

Working speed, km/h

5-8

Transport speed, km/h

20

15

15

Tires

2х6,5/80-15

4х6,5/80-15

4х6,5/80-15

Packaged with haulage tractors

1,4

1,4

3

Tractor capacity, HP

80

120

150

Turbine, drive ВОМ, RPM

540

Replaced hoppers, dm3

6х45

8х45

12х45

Fertilizer hopper, dm3

2х227

2х340

4х227

Work dimensions

Length, mm

2100

2400

2400

Width (w/markers), mm

4100

6500

9500

Height (w/markers), mm

1980

1980

1980

Weight, kg

1030

1540

2450

Auxiliary devices

Disk marker

standard

Gear box

standard

Loading auger

option

Micro-granulator

option

Illumination

standard

Transport trolley

option

Seed control

option

Ha meter

option



Advantages of seeder FUTUTA MAXI 6 (8, 12)

• Main block are made of robust Sweden steel of high hardness and impact strength to extend by times the longevity.
• Chain drive guarantees smooth run necessary for precise sowing. Each element is protected by guards and overload clutch.
• If necessary to change inter-row spacing the seeder is adjusted by user very easily.
• Comfortable adjustable hand wheel with clip for quick and correct adjustment of sowing depth.
• Spacious plastic hopper for seed (45 L).
• Capacious fertilizer distributor (290-420 L) of stainless steel. Dosing and feeding of manure from auger dispenser. Range 35-880 kg/ha.
• Computer for monitoring sowing informs of low level of seed in each row.
• If necessary optional devices are available for sowing beet or in case of sowing with minimum cultivation.
• Vast gamma of options (tug wheel pressure wheel to adjust sowing depth at smaller width, various modifications of computer).
