All Technologies FODDER MIXRE-DISTRIBUTORS

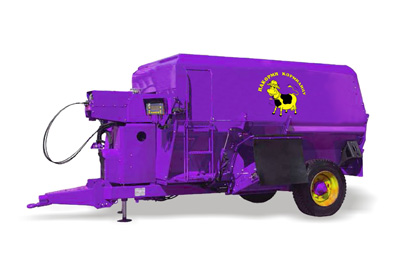

HORIZONTAL PULL-TYPE FODDER MIXER-DISTRIBUTOR

---

The fodder mixer-distributor is equipped with a central mixing system DUO-MIX with two horizontal conveyors with reverse star-blades of high resistance, the thickness of the material in the central sections is 15 mm. The conveyors are equipped with a system of removable serrated shear-bar knives. Mechanism handling is carried out from the tractor cab.

An undeniable advantage – a steel frame with a reinforced bottom of 10 mm thickness. The axis is self-supporting without a double frame. The single wheels are unbreaked. The gearbox with an oil bath. Unloading conveyor of 750*800 mm is fixed on the left, with a hydraulic damper opening. The towbar is height regulated.

PARAMETERS
Type	pull-type
Hopper capacity, m³	from 11 till 20
Double-sided unloading, width, mm	750
DIMENSIONS
Length, mm	6 000
Width, mm	2 300
Height, mm	2 600
Weight, kg	5 000
