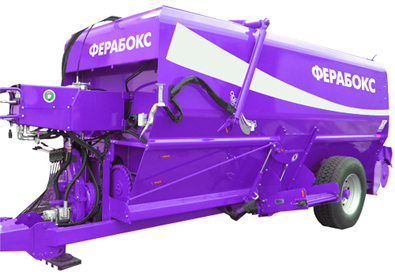

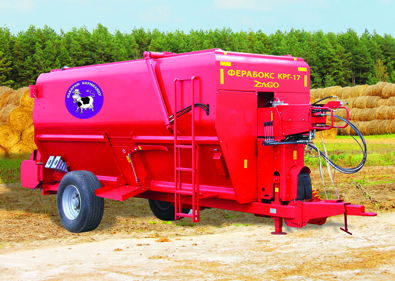

HORIZONTAL FODDER MIXER-DISTRIBUTOR «KRG-11 (13, 15,17)»

Fodder mixer distributor «KRG-11 (13, 15, 17)» is designed for animal barns and for open sites close to the barns. Grinding and mixing may be disconnected during movement of loaded machined from loading and mixing site to dispensers and may be easily connected at the right moment without jamming of conveyors with forage and overloading of power shaft of the tractor.


The unique feature of fodder mixer distributor «KRG-11 (13, 15, 17)» is first of all in patented technology Duo-Mix. Two horizontal conveyors with reverse star-blades, advanced contra-cut plate assures optimal cutting. Absolutely perfect technical mechanism that can be compared if so only with scissors, guaranties forage mixture of coarse particles without damaging the texture, with perfectly cut ends that stimulate rumen of cattle, active chewing and consequently high productivity of the herd.
Mixer distributor controls load sequence of the components, their rate and mixing time, hence, it is not only prepare and dispense the mixtures but severely controls the technology and operation procedures.

Technical specifications

Parameter

KRG-15

KRG-17

Type

semitrailer

Capacity, t

4,8

5,1

Hopper capacity, M3

15

17

Dimensions

Length, mm

7 100

7 500

Width, mm

2 400

2 400

Height, mm

2 650/ 2 950

2 650/ 2 950

Width of open unloading conveyor, mm

2 700

2 700

Width of open unloading double conveyor, mm

2 800

2 800

Height of lifted load cutter, mm

5 950

6 640

Weight, kg

6 600

6 900

Track, mm

1 950

1 950

Road clearance, mm

150 … 450

150 … 450

Nominal tractor capacity, kW/H.P.

80/105

100/130

Transport speed, km/h

12

12

Distribution flow, km/h

5

5

Unload sides of milled forage

Left, right

Load height (max.blade lift), mm

5 750

5 950

Max.height of mixture unload, mm

830

830

Diameter of load blade, mm

610

610

Length of load blade, mm

1 640

1 640

Mixing time, min

5-7

5-7

Content of coarse particles to 55 mm, %

80

80

Yield (silo 250 kg/M3), t/h

- main time

15

17

- shift time

8

9

Fuel per t of forage, L

0,72

0,72

Losses of forage (compensated), %

- during mixing

5

5

- during distribution

2

2

Unload from hopper, NLT%

98

98

Integrity during transportation, NLT %

99,9

99,9

Min.durability, years

9

9

Advantages of mixer distributor «KRG-11 (13, 15, 17)»:

• High precision and user friendly;
• Perfect ground of rolls of hay, straw and haylage of any type of mixing and uniform mixing of any fiber, solid or liquid additives;
• To 50% time reduce for cutting and mixing;
• 40% less fuel per t of mixture against other mixers distributors;
• Higher consumption by cows and min.losses;
• Significantly lower labor costs for loading, mixing, transportation and distribution, one operator only.
