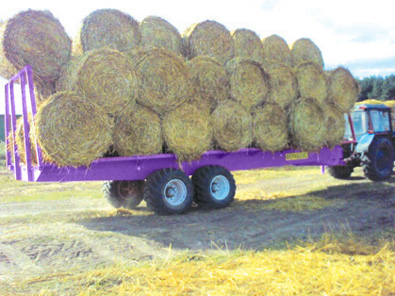

SPECIAL TRACTO SEMITRAILER «PTC-36»
Special tractor semitrailer «PTC36» is designed for handling pressed rolls (hay, straw, dry mass) and other loose agricultural products. The supply includes special compression band to fix the load during transportation.
It is aggregated with wheel tractors of traction class 3 and higher with hydraulic system outlets socket for lightning and traction-drawbar TCU-3K or TCU-2B (plug).
The main advantages of semitrailer are multifunction and simple aggregation. Semitrailer is equipped with break system. Bi-axial tandem bridge assures safety and flexibility.
Technical specifications
|
Load capacity, t |
20 |
|
Max.number of rolls
(1,2 х |
36 |
|
Specific pressure on
soil, MPa |
0,15 |
|
Max.rate of motion,
km/h |
25 |
|
Length, mm |
11 700 |
|
Width, mm |
3 000 |
|
Height, mm |
3 400 |
|
Weight of equipped
semitrailer, kg |
4 700 |
|
Tires |
24.0/50-22.5 |
|
Road clearance, mm |
500 |
|
Track size, mm |
2 150 |
|
Tractor capacity,
H.P. |
From 150 |
|
Monthly maintenance
time, h |
0,3 |
|
Min.durability |
8 |
|
Maintenance
personnel |
1 |
