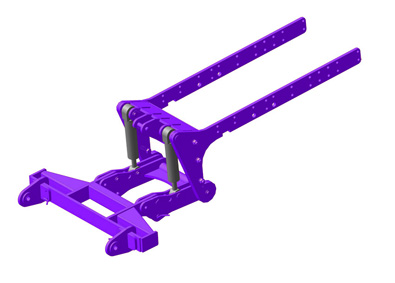

FRONT MOUNTED HOIST
Front mounted device is designed for mounting on tractor of traction class 1,4-2.0 and further hinge on it of various agricultural and utility devices (like lifting devices, blades, front mowers, etc.).
The device is fixed to semi-frame of tractor by mounting holes on frame rail.
|
Hoist type |
Three-point |
|
Length, mm |
2 234 |
|
Width, mm |
1 040 |
|
Height, mm |
606 |
|
Weight, kg |
285 |
|
Cylinder, pcs. |
2 two-way run |
|
Cylinder diameter,
mm |
63 |
|
Piston stroke, mm |
200 |
|
Type of fixture in
working position |
Hydraulic |
|
Bracket of attached
device |
Articulated
mechanism |
|
Safe tractor axel
load, kN |
25 |
